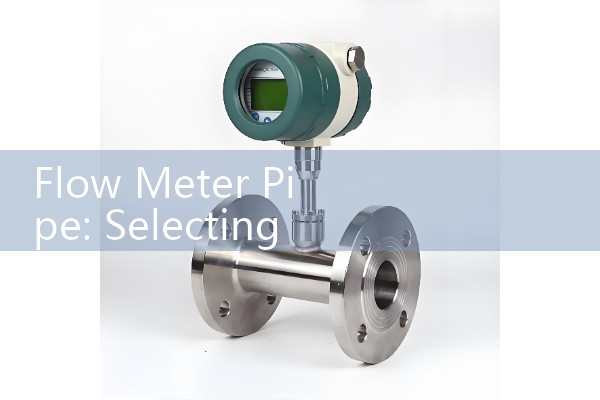

Flow Meter Pipe: Selecting Inline and External Pipeline Measuring Sensors
Quick Answer: Inline flow meters like electromagnetic or Coriolis types give you unmatched accuracy inside the pipe when the process can be shut down. External clamp-on ultrasonic sensors are the go-to choice for pressurized lines that cannot be cut, especially in water and wastewater retrofits across Southeast Asia and Oceania. Your selection boils down to pipe access, fluid conductivity, and the true cost of a plant shutdown.
Inline Flow Meters: Direct Contact, Higher Accuracy
Inline sensors are mounted directly into the pipe run, usually between flanges. They see the fluid physically. An electromagnetic flow meter requires the pipe to stay full and the liquid to have a minimum conductivity, typically above 5 µS/cm. Silver Automation Instruments supplies magmeters from DN6 up to DN3000, with PTFE or hard rubber liners. We have seen a palm oil refinery in Indonesia replace a failing turbine meter with a DN80 inline electromagnetic unit. The accuracy jumped to ±0.5% of reading and they stopped worrying about bearing wear.
Coriolis mass flow meters are even more direct. They measure mass flow, density, and temperature simultaneously. No need for external temperature compensation. A chemical dosing application in a Philippine plant uses a DN15 Coriolis meter from our Silver Instruments range to track kg/h of solvent with ±0.1% accuracy. Inline does mean you cut the pipe and install flanges. Shutdown is mandatory. For a new build, this cost is minor. For a live crude oil line in the Middle East, the downtime cost changes the equation completely.
External Clamp-On Sensors: Non-Intrusive Installation
Clamp-on ultrasonic flow meters strap onto the outside of the pipe wall. No cutting, no welding, no pressure drop. They work through the pipe with transducers sending signals across the fluid. Our portable and fixed clamp-on meters are installed on steel, copper, and rigid plastic pipes from DN20 to DN2000. The key requirement is a clean, straight pipe surface and the absence of air bubbles or heavy slurry. A desalination plant in Australia uses our fixed clamp-on meter on a DN500 raw seawater intake line. They clamped it on in under two hours without a single spanner on the process pipe.
There is a catch. Clamp-on ultrasonic meters need the pipe wall to transmit sound reliably. Old, heavily corroded pipes with scale buildup inside will scatter the signal. In those cases a spool-piece inline meter may still be the solid fix. Also, accuracy sits around ±1% to ±2% of reading, depending on pipe alignment and fluid type. Engineers keep this in mind when they need custody transfer versus process monitoring. For a biogas line in Thailand with fluctuating pressure, we recommended an inline vortex meter despite the customer initially asking for clamp-on. The clamp-on signal was too unstable due to moisture in the gas.
Critical Factors: Pipe Material, Liner, and Fluid Conductivity
You cannot ignore the pipe itself. An inline electromagnetic meter needs a conductive fluid, but the external sensor only cares about the pipe material for signal transmission. Carbon steel pipes cause less ultrasonic attenuation than cast iron with graphite inclusions. Most engineers skip this detail and then wonder why the signal strength is low. Plastic pipes like PVC or HDPE require special coupling and sometimes a different frequency. On the inline side, corrosive fluids demand specific wetted materials. We stock Hastelloy C electrodes and PTFE liners for acid dosing in Australian mining operations. A standard 316L stainless steel electrode will dissolve rapidly in hydrochloric acid.
Temperature is another hidden trap. An inline Coriolis meter rated for 200°C looks perfect until you realize the clamp-on ultrasonic transducer only handles 150°C on the pipe surface. The pipe material expands, the couplant dries out, and you lose signal. We ask for pipe schedule, material, and operating temperature before quoting an external meter. Without this, the installation becomes a guessing game.
Cost Comparison: Capex vs. Installation Downtime
The upfront purchase price of a clamp-on ultrasonic meter often looks higher than a comparable inline turbine or magmeter. But the total installed cost can tilt the other way once you factor in welding, pipe fitters, radiography, and lost production. An oil terminal in Nigeria needed a meter on a 12-inch unplanned well line. A DN300 inline meter installation would have required a 72-hour shutdown, costing them roughly $150,000 in deferred production. The clamp-on meter, installed with epoxy couplant while the pipe flowed, paid for itself w
Application Examples: When to Choose Inline or External
Let us look at some real combinations. For a seawater flow meter in a desalination plant, a rubber-lined inline magmeter is tough and reliable. The fluid is conductive, so electromagnetic works perfectly. For a chilled water loop in a commercial building in Malaysia, a clamp-on ultrasonic meter is ideal because the pipes are in tight riser shafts, and cutting in a meter would require asbestos abatement. A biodiesel plant in Brazil uses oval gear inline meters on truck loading because they need positive displacement accuracy for batch totals. Externally measuring the same sticky fluid with ultrasonic would still require a straight run and reliable Reynolds number correction. Every application carries its own weight.
How to Specify Your Pipe Conditions to a Supplier
Do not just send an email asking for a flow meter price. Send us your pressure (bar), temperature (°C), pipe size (DN), pipe material, fluid, and flow range. If you have a data sheet or a photo of the existing pipe with paint markings, even better. Our team at Silver Automation Instruments uses this to shortlist inline or external sensors within half a day. You will get a quote that matches the actual installation, not a generic one. For very large pipes above DN1200, we often propose an insertion inline probe or a multi-path clamp-on setup. We also provide 4-20 mA HART, Modbus RTU, and pulse outputs to integrate into your existing PLC. Many SMEs in Africa and Latin America choose our R/S/T/H series magmeters because they run on a single 24 V DC supply without expensive field wiring.
FAQ
Which meter type works best for a wastewater pipe that never stops?
Go with clamp-on ultrasonic. You can mount the transducers on a DN150 ductile iron pipe while the pump keeps running. Just make sure the pipe is full and the inner wall is not heavily scaled. We also check for suspended solids because high sludge concentration attenuates the ultrasonic signal, but in typical municipal sewage the measurement holds up well.
Can I use an inline electromagnetic meter on a plastic pipe?
Yes, the pipe material does not matter for inline magmeters because the sensors contact the fluid. However, you must install the meter between two flange adapters. The liner integrity is more critical than the external pipe. If your plastic pipe has poor support, the flanged meter may cause stress, so add pipe supports on both sides.
Are clamp-on meters accurate enough for custody transfer?
Most national metrology authorities require ±0.5% or better for fiscal measurement, and standard clamp-on ultrasonic meters typically achieve ±1% to ±2%. For custody transfer we recommend inline Coriolis or positive displacement meters unless you invest in a high-accuracy multi-path clamp-on system with traceable on-site calibration. In some regions, local regulations explicitly demand inline devices.
Your Coriolis meter works with viscous fluids. Can I measure heavy fuel oil with a clamp-on device?
Heavy fuel oil at ambient temperature often has extremely high viscosity above 300 cP, which kills the ultrasonic signal in a clamp-on setup. Heat tracing changes things, but the safe bet is an inline Coriolis or oval gear meter. We supply heated Coriolis meters for customers in Malaysia and Singapore who handle residual fuel oil on barges.
How do I avoid buying the wrong size meter for my pipe?
Measure the exact outer diameter and wall thickness with a caliper or ultrasonic thickness gauge. Do not rely on nominal pipe size only. A DN100 schedule 40 pipe differs from a schedule 80 pipe in internal diameter, which changes flow velocity. Send us the measured OD and wall thickness along with the material grade. We will size the meter so the flow falls into the optimum velocity range of 2 to 4 m/s for liquids.
